LS-02 Anti-UAV System
System Overview:
It is composed of radar, optoelectronics, wireless detection, wireless interference, laser damage, turn-
table, algorithm, management platform software, etc.
After the radar detection and wireless detection find the target; the optoelectronic turntable is guided
to capture, lock, and track the target; the optoelectronic turntable uses visible light, short wave, medium
wave, and long-wave infrared to detect, detect, lock, and track the target; for suspected targets, wireless
interference is used; if the interference fails, the laser is used to damage the target.

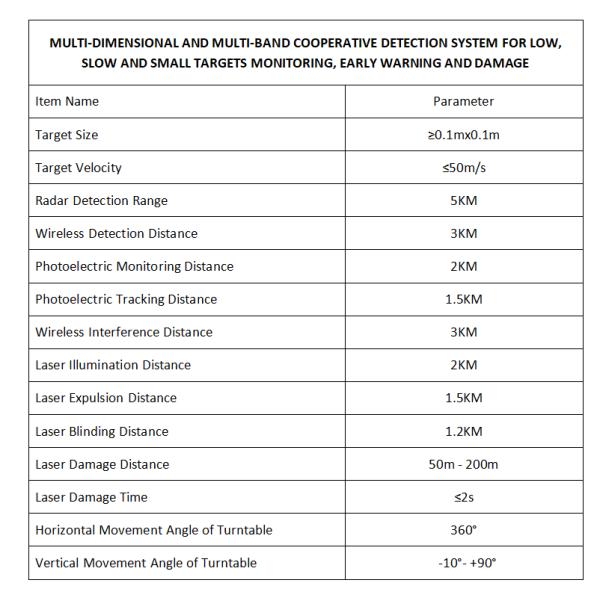

System Composition and Characteristics
System integrated design: Radar + Photoelectric + Wireless detection + Wireless interference + Laser
damage + Algorithm + Management platform software.
• High detection rate: Adopting multiple detection methods, the detection success rate exceeds 95%.
• High-precision tracking: The photoelectric system supports multi-target tracking and has real-time
performance and accuracy.
• Efficient interference: Combining laser and electromagnetism, the interference efficiency is as high as
98%. Lasers have the function of striking and destroying drones, effectively responding to all kinds of
drones.
• Modular design: Supports on-demand configuration and flexibly adapts to different usage scenarios.
• AI algorithm: It has big data automated analysis of drone flight trajectories for accurate tracking and
early warning, and can predict drone flight trajectories in advance.
• Big data analysis: Conduct statistics and analysis through images, videos, and detection data and use
accurate algorithms. Accurate three-dimensional map orientation and identification, information, etc.
Realize the Functions:
• Monitoring (radar + wireless detection + photoelectric monitoring)
• Detection (algorithm detection, small target detection, infrared target detection to determine what the
target is)
• Discovery (discover the target in the field of view)
• Capture (select the target with a selected frame)
• Lock (lock the target with a selected frame)
• Tracking (the target always runs in the selected frame)
• Alarm and warning (the monitoring center alarms for target locking)
• Wireless interference and expulsion (transmit radio waves to interfere with the communication
between the pilot and the drone. Directional interference will not interfere with other targets)
• Laser illumination (When the target is 2000 meters away, turn on the laser lighting to enhance the
brightness of the target and make the video image clear)
• Laser expulsion (When the target is 1500 meters away, emit stroboscopic laser to expel the target.)
• Laser blinding (When the target is 1200 meters away, use laser to irradiate the camera and other image
acquisition equipment of the target to blind the equipment and make it unable to take video images)
• Laser damage (When the target is close to 200 meters, manually operate and turn on the strong laser to
damage the target.)
• Storage and playback.
Application Scenarios:
It can conduct all-weather (24-hour) monitoring, early warning and damage to various aircraft targets
such as drones, low-altitude and slow-flying small aircraft, loitering munitions, light aircraft, aerospace
models, light and ultralight airplanes (including light and ultralight helicopters), gliders, powered delta
wings, hot air balloons, airships, paragliders, powered paragliders, drones, unmanned free balloons,
tethered balloons, sky lanterns, large kites and so on. It can also be applied to activities such as deicing,
high-altitude removal of foreign objects, bird repelling, and tree felling.
Application Places:
• Public security and national defense: Mainly used to combat terrorist attacks and maintain public order.
• Military applications: Early warning and defense for military oil depots, barracks, border defense lines, etc.
• Controlled areas: Confidential documents, safety of researchers, facility protection, etc.
• Airports and ports: Ensure aviation and shipping safety.
• High-tech companies: Protect trade secrets and intellectual property.
• Large manufacturing industries: Prevent industrial espionage.
• Private territory: Ensure personal privacy and security.
• Public activities: Such as concerts, sports events, etc., to prevent drone interference.
